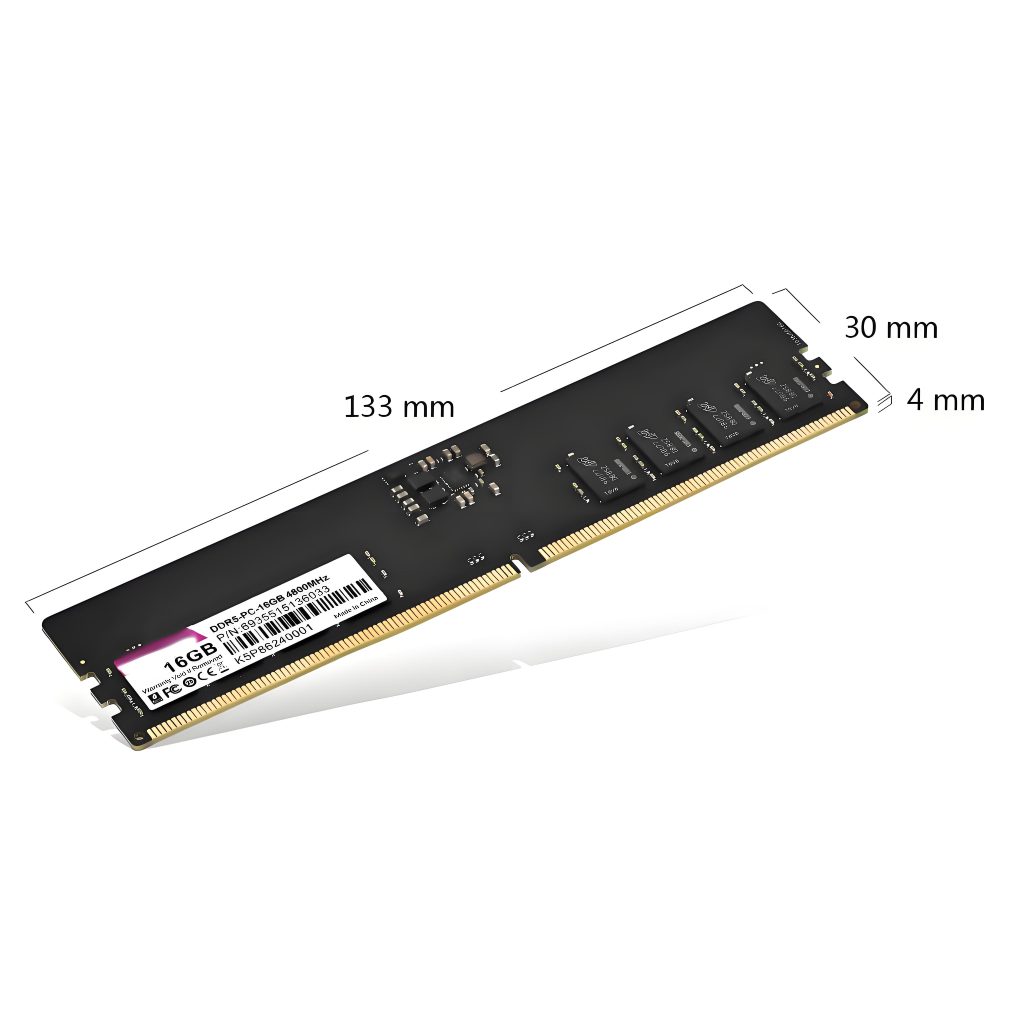

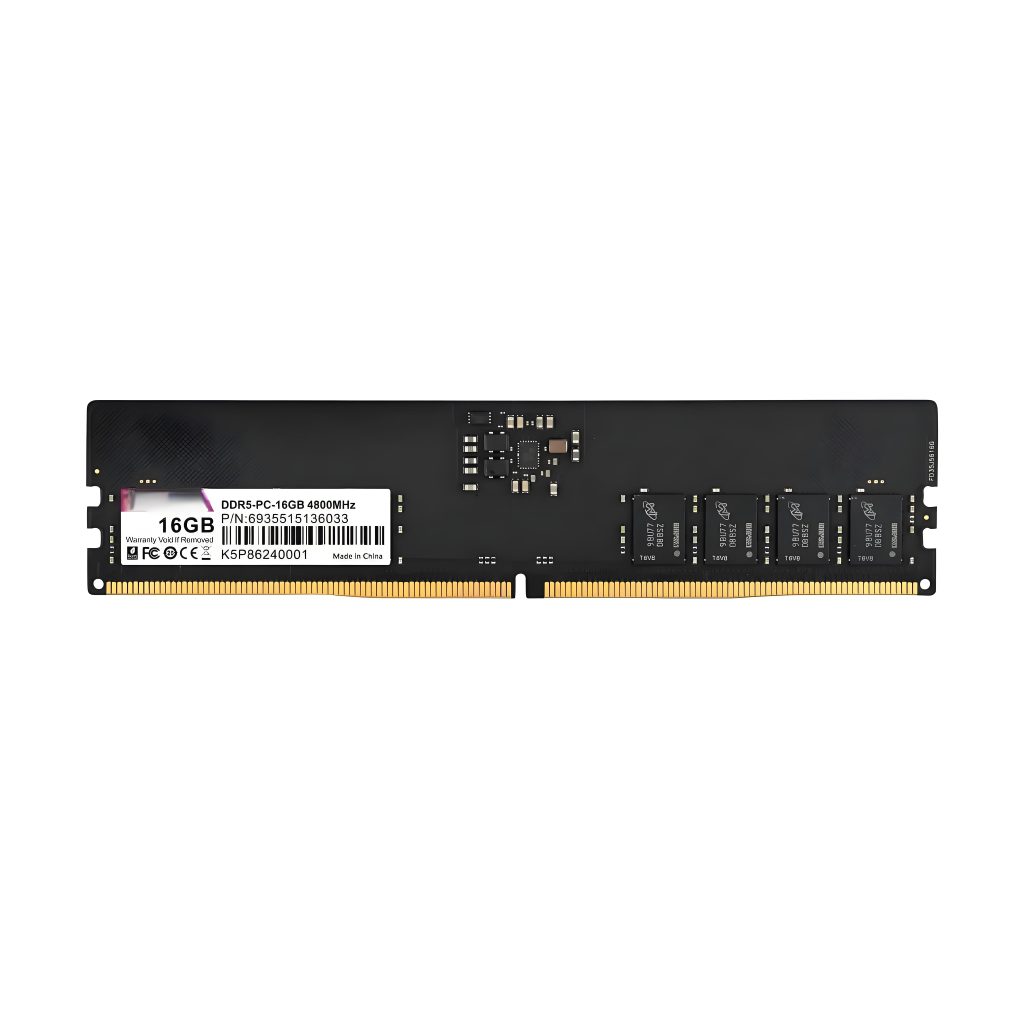

DDR5 Memory UDIMM Series
| Series | DDR5 UDIMM Series | |||||
| Capacity | 8GB | |||||
| Model Number | DDR5-PC-8GB | |||||
| EAN | 6935515137634 | 6935515137641 | 6935515139317 | 6935515139324 | ||
| Memory Speed / Frequency | 4800MHz | 5600MHz | 6000MHz | 6400MHz | ||
| Rank (1Rx8/2Rx8/8Rx4) | 1Rx8 | 1Rx8 | 2Rx8 | 2Rx8 | ||
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | ||
| Operating Voltage | 1.1v | 1.1v | 1 | 1.4v | ||
| Capacity | 16GB | |||||
| Model Number | DDR5-PC-16GB | |||||
| EAN | 6935515103134 | 6935515136057 | 6935515103011 | 6935515103028 | 6935515139331 | 6935515139348 |
| Memory Speed / Frequency | 4800MHz | 5600MHz | 6000MHz | 6400MHz | 6800MHz | 7200MHz |
| Rank (1Rx8/2Rx8/8Rx4) | 1Rx8 | 1Rx8 | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 |
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | CL34-45-45-108 | CL36-46-46-116 |
| Operating Voltage | 1.1v | 1.1v | 1 | 1.4v | 1.4v | 1.4v |
| Capacity | 32GB | |||||
| Model Number | DDR5-PC-32GB | |||||
| EAN | 6935515136040 | 6935515136064 | 6935515103035 | 6935515103042 | 6935515139355 | 6935515139362 |
| Memory Speed / Frequency | 4800MHz | 5600MHz | 6000MHz | 6400MHz | 6800MHz | 7200MHz |
| Rank (1Rx8/2Rx8/8Rx4) | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 |
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | CL34-45-45-108 | CL36-46-46-116 |
| Operating Voltage | 1.1v | 1.1v | 1 | 1.4v | 1.4v | 1.4v |
| No. of Memory IC | 45885 | |||||
| Power Consumption | 3W | |||||
| Controller IC | NO | |||||
| Overclock Support (YES / NO) | NO | |||||
| ECC (Error Correction Code) (YES/NO) | NO | |||||
| Net Weight (g) | 15g | |||||
| Gross Weight (g) | 35g | |||||
| Pin Count | 288 | |||||
| OEM/ODM Support | YES | |||||
| Heat Sink / Heat Spreader | NO | |||||
| Form Factor | UDIMM | |||||
| Computer Memory Type (DRAM/SDRAM) | DRAM | |||||
| Operating Temperature | 0-70℃ | |||||
| Storage Temperature | -40~85℃ | |||||
| Warranty | 3 Years | |||||
| No. of Memory Channels (Single/Dual) | (Single/Dual) | |||||
| Product Dimension (W x D x H) in mm | 133x30x4mm | |||||
| Buffered / Un-buffered Memory | Un-buffered Memory | |||||
| Memory IC Brand | Micron/Samsung/Sk Hynix | |||||

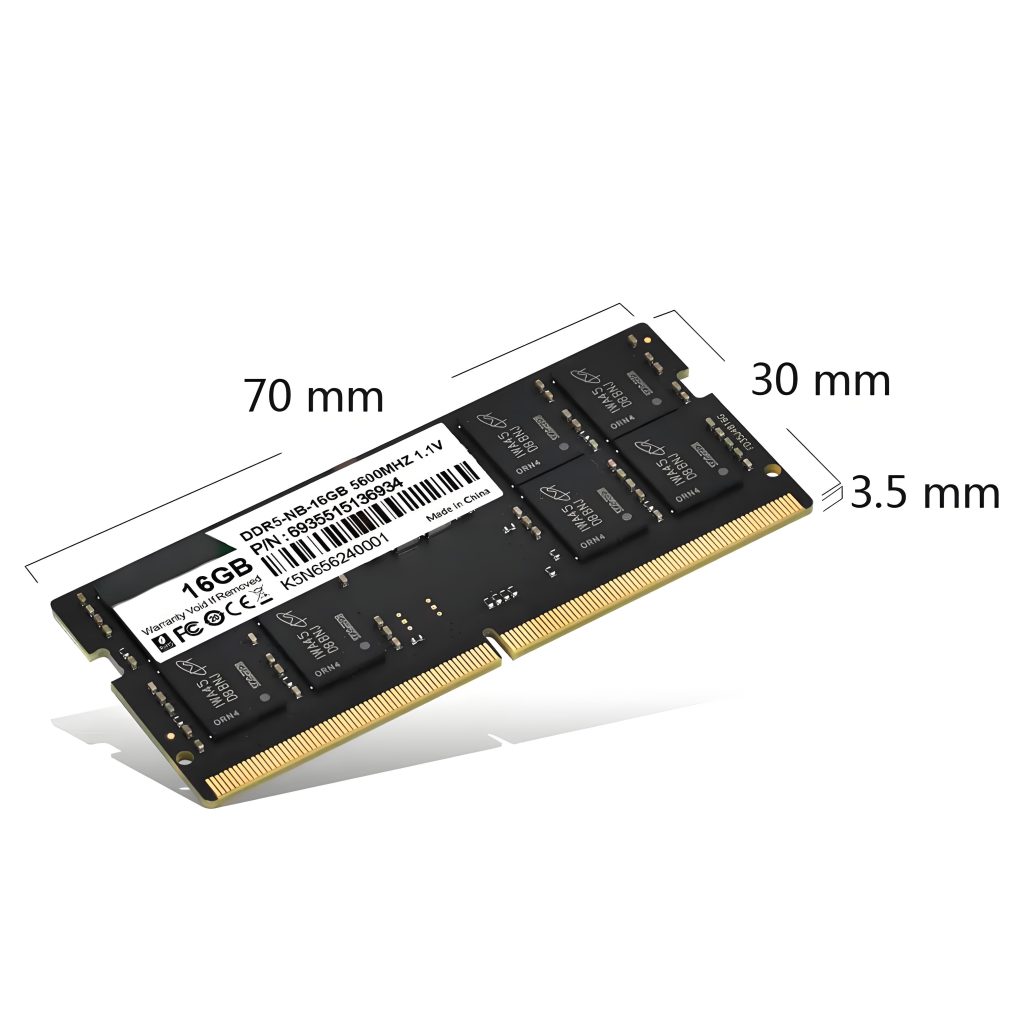

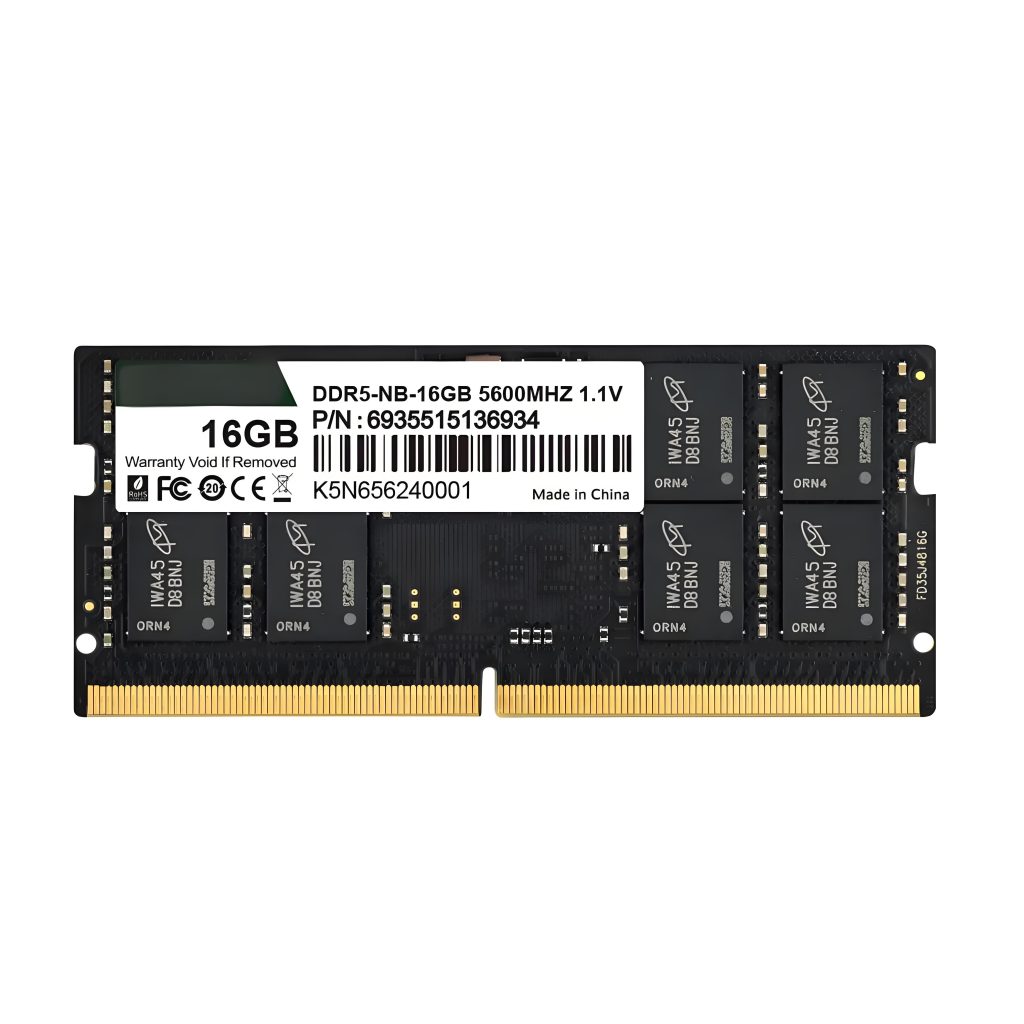

DDR5 Memory SODIMM Series
| Series | DDR5 SODIMM Series | ||||
| Capacity | 8GB | ||||
| Model Number | DDR5-NB-8GB | ||||
| EAN | 6935515137658 | 6935515137665 | 6935515139379 | 6935515139386 | |
| Memory Speed / Frequency | 4800MHz | 5600MHz | 6000MHz | 6400MHz | |
| Rank (1Rx8/2Rx8/8Rx4) | 1Rx8 | 1Rx8 | 2Rx8 | 2Rx8 | |
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | |
| Operating Voltage | 1.1V | 1.1V | 1.35V | 1.4V | |
| Capacity | 16GB | ||||
| Model Number | DDR5-NB-16GB | ||||
| EAN | 6935515136910 | 6935515136934 | 6935515103059 | 6935515103066 | 6935515139393 |
| Memory Speed / Frequency | 4800MHz | 5600MHz | 6000MHz | 6400MHz | 6800MHz |
| Rank (1Rx8/2Rx8/8Rx4) | 1Rx8 | 1Rx8 | 2Rx8 | 2Rx8 | 2Rx8 |
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | CL34-45-45-108 |
| Operating Voltage | 1.1V | 1.1V | 1.35V | 1.4V | 1.4V |
| Capacity | 32GB | ||||
| Model Number | DDR5-NB-32GB | ||||
| EAN | 6935515136927 | 6935515136941 | 6935515103073 | 6935515103080 | 6935515139416 |
| Memory Speed / Frequency | 4800MHz | 5600MHz | 6000MHz | 6400MHz | 6800MHz |
| Rank (1Rx8/2Rx8/8Rx4) | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 |
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | CL34-45-45-108 |
| Operating Voltage | 1.1V | 1.1V | 1.35V | 1.4V | 1.4V |
| No. of Memory IC | 45885 | ||||
| Power Consumption | 3W | ||||
| Controller IC | NO | ||||
| Overclock Support (YES / NO) | NO | ||||
| ECC (Error Correction Code) (YES/NO) | NO | ||||
| Net Weight (g) | 10g | ||||
| Gross Weight (g) | 28g | ||||
| Pin Count | 260 | ||||
| OEM/ODM Support | YES | ||||
| Heat Sink / Heat Spreader | NO | ||||
| Form Factor | SODIMM | ||||
| Computer Memory Type (DRAM/SDRAM) | DRAM | ||||
| Operating Temperature | 0-70℃ | ||||
| Storage Temperature | -40~85℃ | ||||
| Warranty | 3 Years | ||||
| No. of Memory Channels (Single/Dual) | (Single/Dual) | ||||
| Product Dimension (W x D x H) in mm | 70x30x3.5mm | ||||
| Buffered / Un-buffered Memory | Un-buffered Memory | ||||
| Memory IC Brand | Micron/Samsung/Sk Hynix | ||||

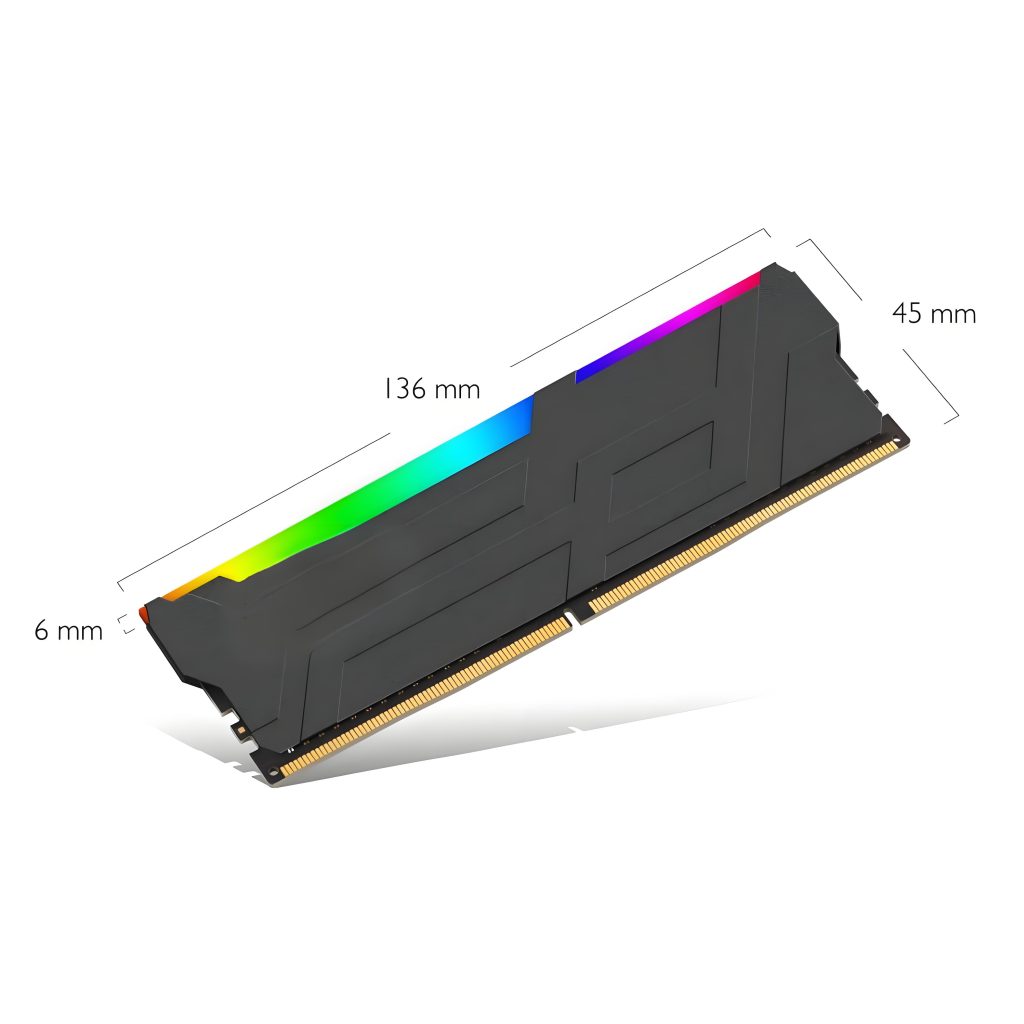

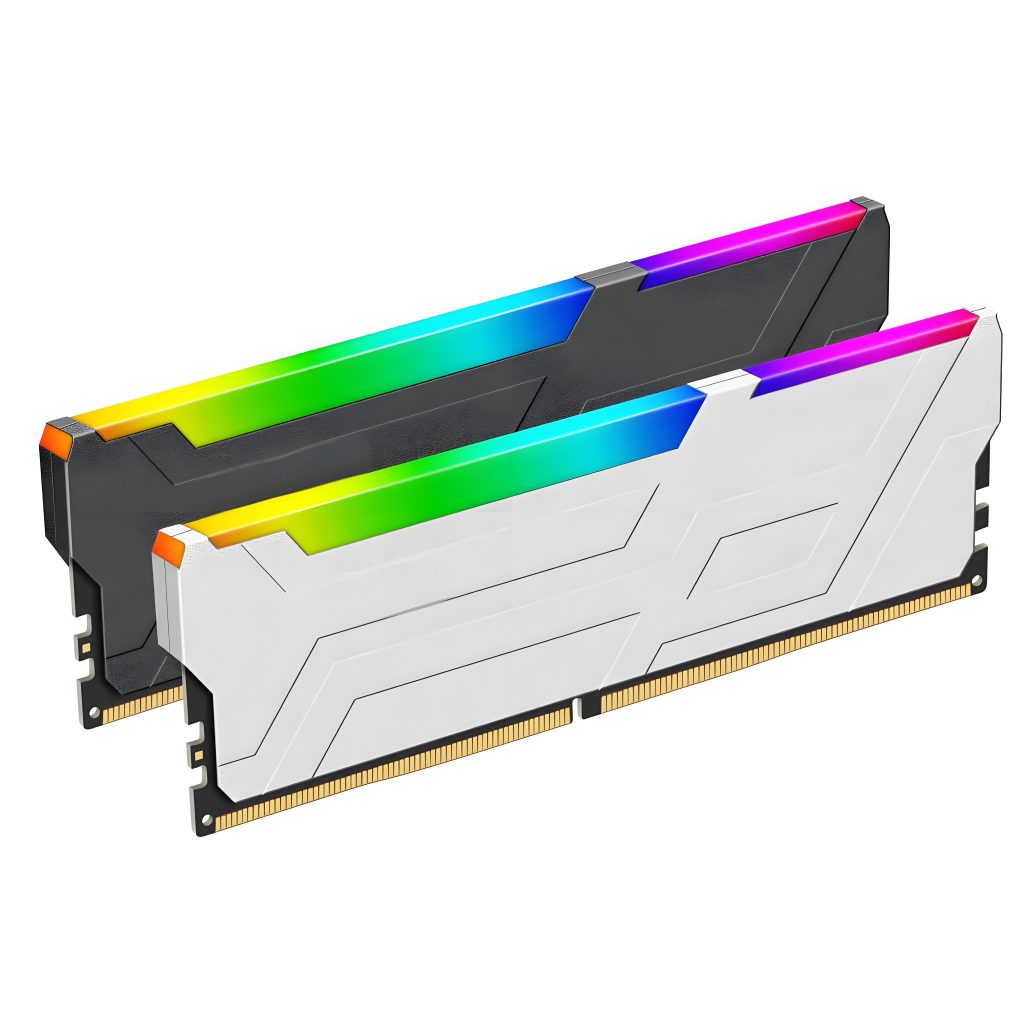

DDR5 RGB With Heatsink UDIMM Series
| Series | DDR5 RGB With Heatsink UDIMM Series(RH52 Series) | |||||
| Capacity | 8GB | |||||
| EAN | 6935515107590 | 6935515107583 | 6935515139720 | 6935515139713 | ||
| Memory Speed / Frequency | 4800MHZ | 5600MHZ | 6000MHZ | 6400MHZ | ||
| Rank (1Rx8/2Rx8/8Rx4) | 1Rx8 | 1Rx8 | 2Rx8 | 2Rx8 | ||
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | ||
| Operating Voltage | 1.1v | 1.1v | 1 | 1.4v | ||
| Capacity | 16GB | |||||
| EAN | 6935515107576 | 6935515107569 | 6935515107552 | 6935515107545 | 6935515139706 | 6935515139690 |
| Memory Speed / Frequency | 4800MHz | 5600MHz | 6000MHZ | 6400MHZ | 6800MHZ | 7200MHZ |
| Rank (1Rx8/2Rx8/8Rx4) | 1Rx8 | 1Rx8 | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 |
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | CL34-45-45-108 | CL36-46-46-116 |
| Operating Voltage | 1.1v | 1.1v | 1 | 1.4v | 1.4v | 1.4v |
| Capacity | 32GB | |||||
| EAN | 6935515107538 | 6935515107521 | 6935515107514 | 6935515107507 | 6935515139683 | 6935515139676 |
| Memory Speed / Frequency | 4800MHz | 5600MHz | 6000MHZ | 6400MHZ | 6800MHZ | 7200MHZ |
| Rank (1Rx8/2Rx8/8Rx4) | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 | 2Rx8 |
| CAS Latency | CL40-40-40-77 | CL46-45-45-90 | CL46-48-48-96 | CL32-39-39-80 | CL34-45-45-108 | CL36-46-46-116 |
| Operating Voltage | 1.1v | 1.1v | 1 | 1.4v | 1.4v | 1.4v |
| No. of Memory IC | 45885 | |||||
| Power Consumption | 3W | |||||
| Controller IC | NO | |||||
| Overclock Support (YES / NO) | NO | |||||
| ECC (Error Correction Code) (YES/NO) | NO | |||||
| Net Weight (g) | 55g | |||||
| Gross Weight (g) | 90g | |||||
| Pin Count | 288 | |||||
| OEM/ODM Support | YES | |||||
| Heat Sink / Heat Spreader | YES | |||||
| RGB lights | YES | |||||
| Form Factor | UDIMM | |||||
| Computer Memory Type (DRAM/SDRAM) | DRAM | |||||
| Operating Temperature | 0-70℃ | |||||
| Storage Temperature | -40~85℃ | |||||
| Warranty | 3 Years | |||||
| No. of Memory Channels (Single/Dual) | (Single/Dual) | |||||
| Product Dimension (W x D x H) in mm | 136x45x6mm | |||||
| Buffered / Un-buffered Memory | Un-buffered Memory | |||||
| Memory IC Brand | Micron/Samsung/Sk Hynix | |||||
