HT Semi

SSD

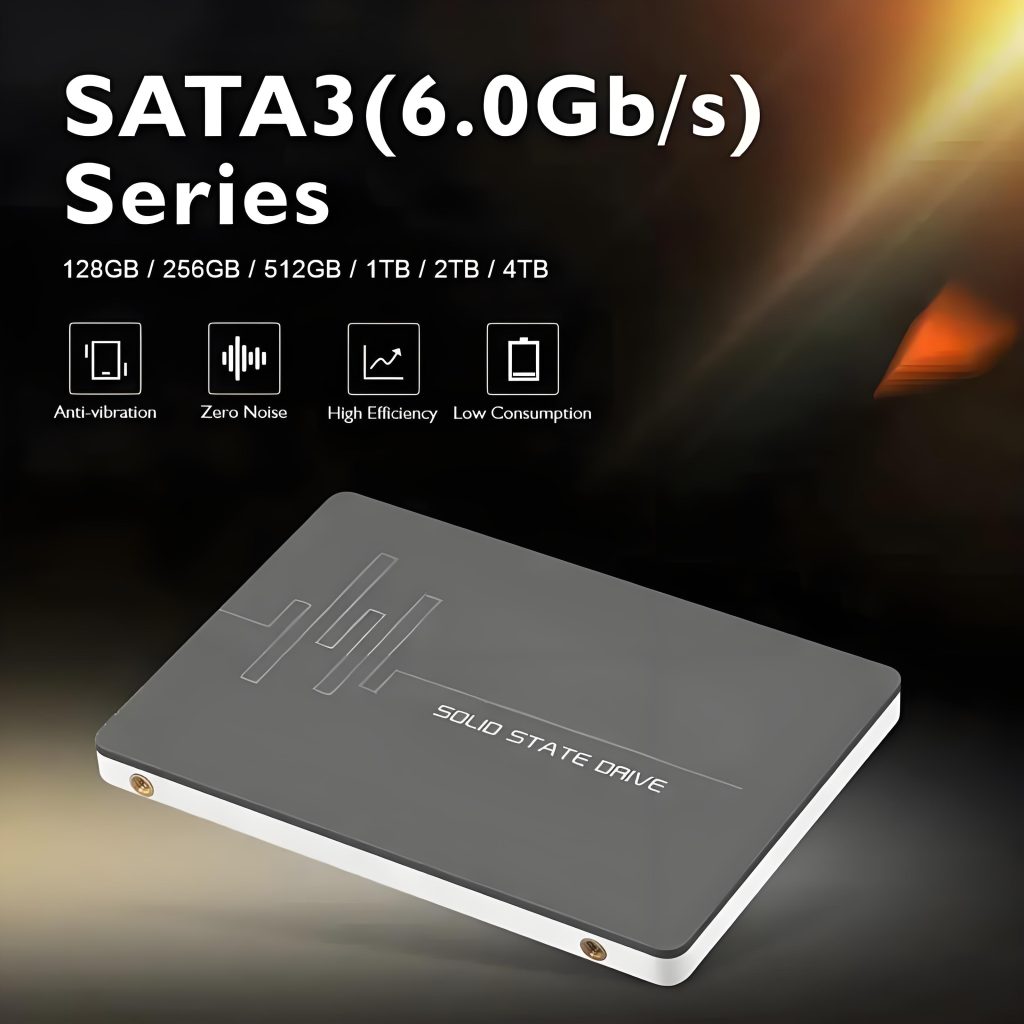

2.5 Inch SATA3 S370 Series SSD

  • Interface: SATA3(6.0Gb/s), compatible with SATA2(3.0Gb/s);
  • Storage Temperature: -40-75℃;
  • Operating Temperature: 0-70℃;
  • Efficient Transmission: Speeds up to 556MB / s;
  • Capacity: 128GB/256GB/512GB/1TB/2TB/4TB;
  • Compatible Systems: Windows, Unix, Linux, Mac etc;

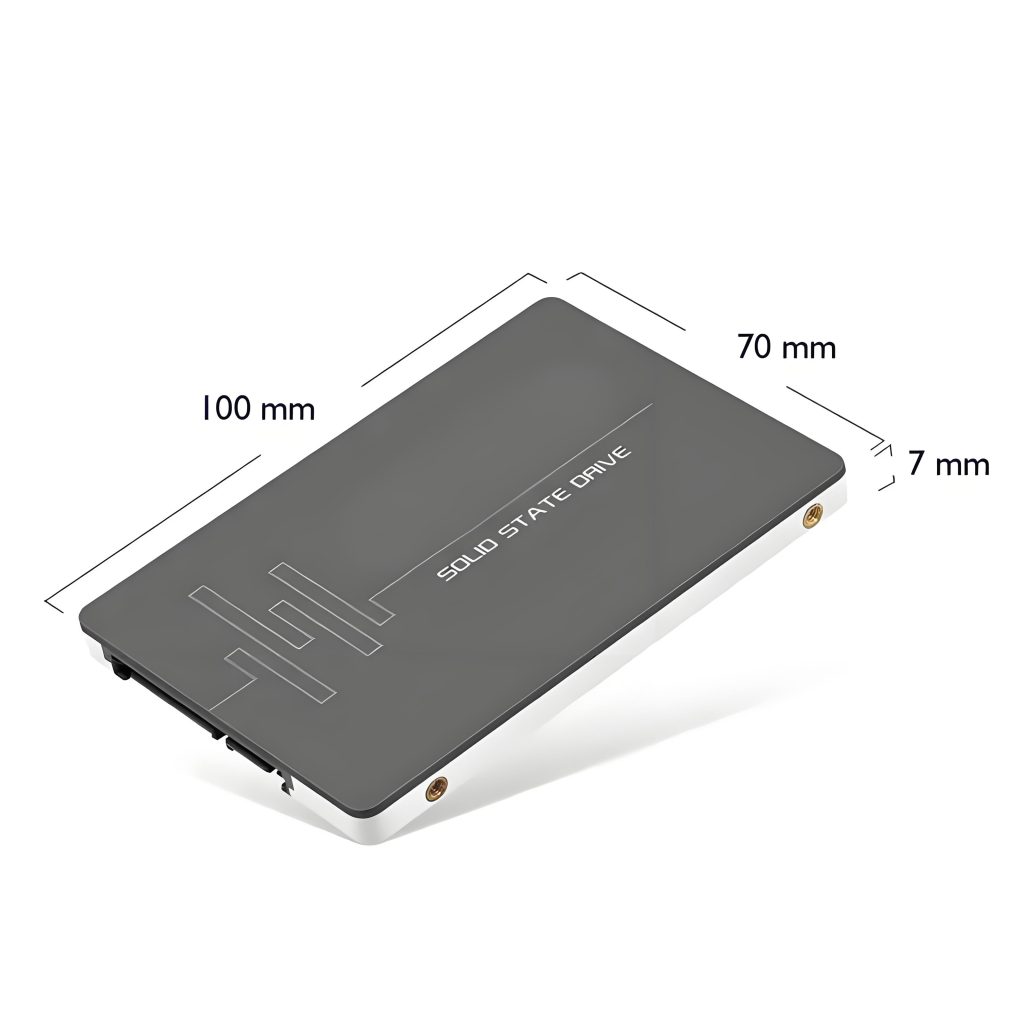

  • Dimension: 100*70*7 mm;
  • Use for: PC, laptop, IPC, embedded computer, thin client, Mini-PC, POS Machines, All-in-one PC, etc.
Model NameS370-128GBS370-256GBS370-512GBS370-1TBS370-2TBS370-4TB
Capacity128GB256GB512GB1TB2TB4TB
EAN6935515100874 6935515100881 6935515100751 693551513927069355151392876935515139294
Min Sequential Read/Write(MB/s)500MB/s/360MB/s500MB/s/400MB/s540MB/s/430MB/s530MB/s/500MB/s530MB/s/500MB/s535MB/s/506MB/s
Max Sequential Read/Write(MB/s)500MB/s/470MB/s505MB/s/500MB/s550MB/s/510MB/s540MB/s/500MB/s550MB/s/500MB/s556MB/s/508MB/s
Product Series2.5 Inch SATA3 S370 Series SSD
Interface TypeSATAIII (6.0 Gb/s)
OriginCN (Origin)
BrandHTsemi
Transport ProtocolAHCI
Net Weight40g
Gross Weight65g
RGBNo
Temperature AlertNo
OEM/ODMYes
CacheNone
4KB Random Wirte70804
4KB Random Read61783
Internal/ExternalInternal
Operating Voltage5V
Operating Temperature0-70℃
Storage Temperature-40~85℃
Warranty3 Years
Nand Flash TypeTLC/QLC
MTBF1000000h
Item Demension100*70*7MM
Box Packing Size145*88*16.5MM
CertificateCE、FCC、ROHS、KC
ApplicationPC/NB/Server/All in one PC etc
ControllerSMI/Yeestor/Realtek/Maxio etc
Flash BrandIntel/Micron/SAMSUNG/SK Hynix/SanDisk/Kioxia/YMTC
  1. Note: Speed measurement is for reference only (Speed measurement is slightly different for different computer configurations)

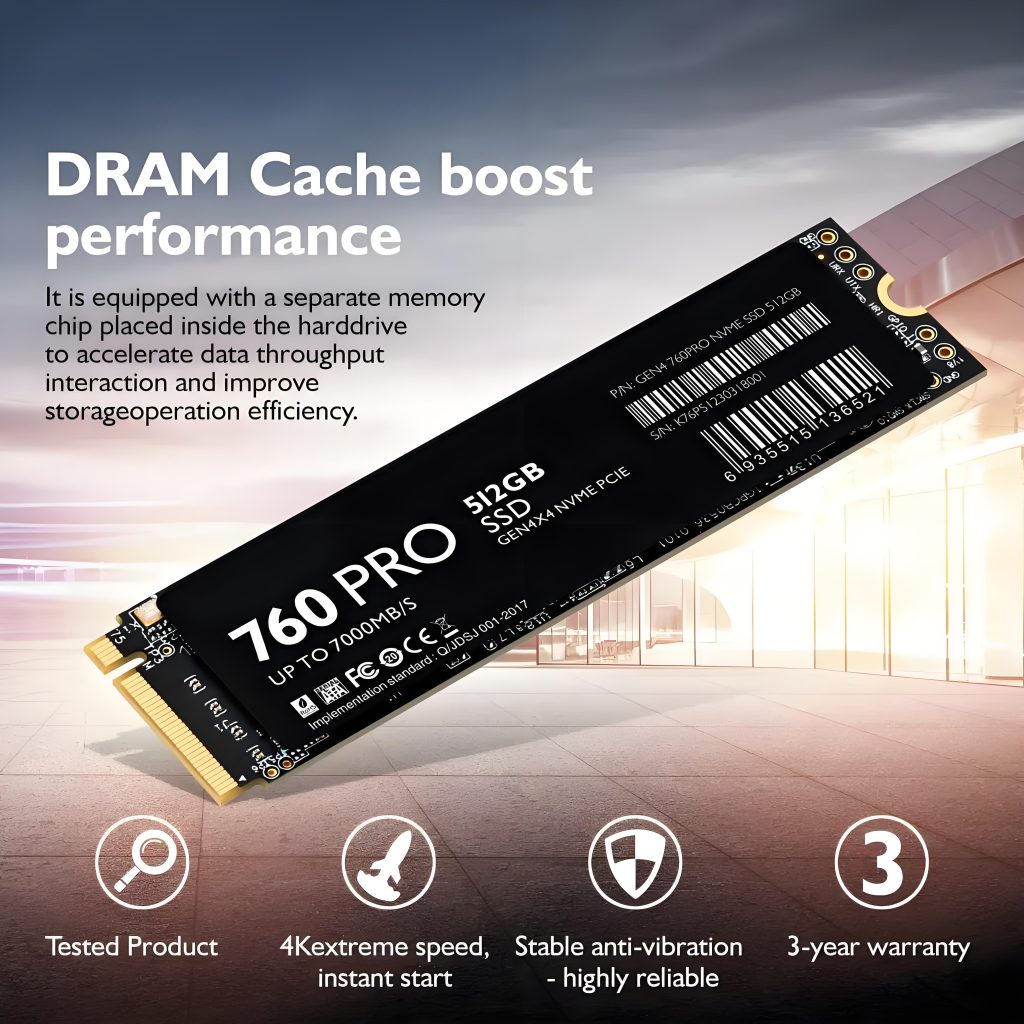

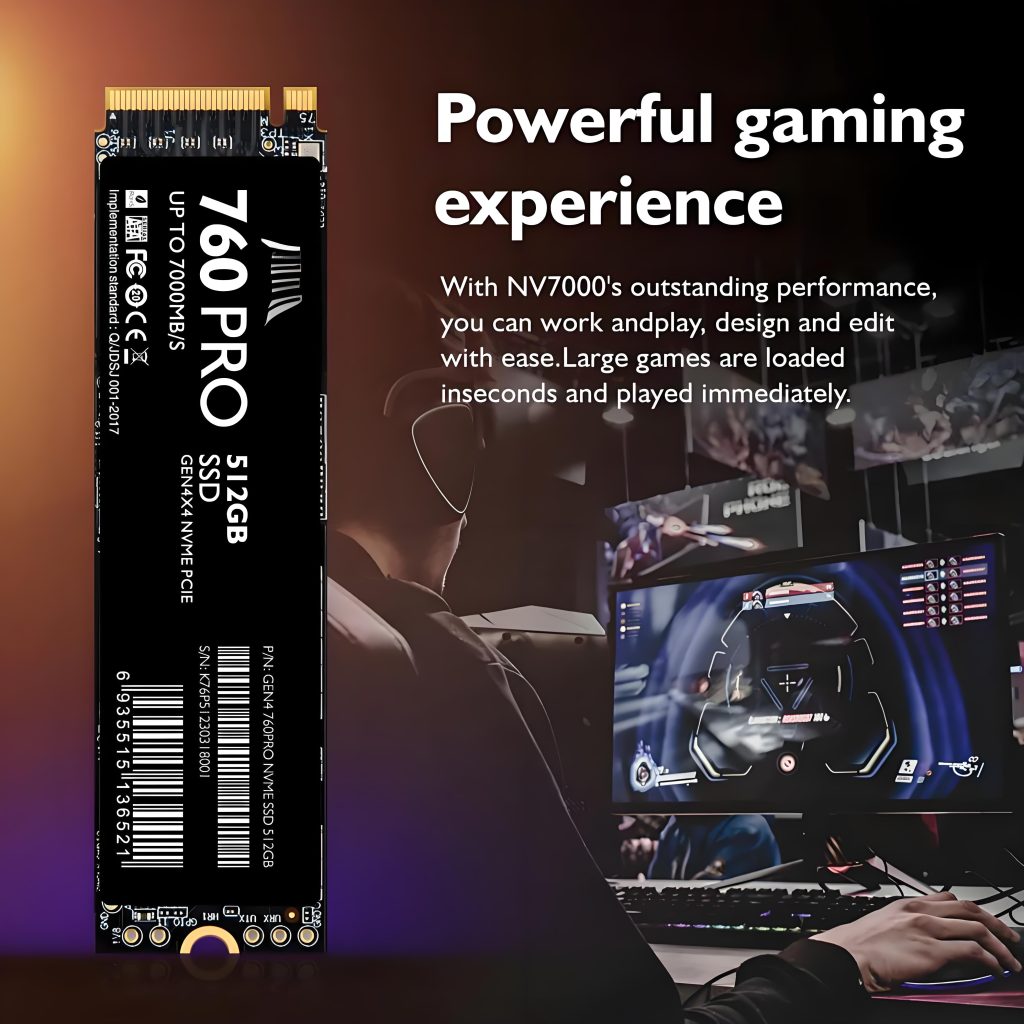

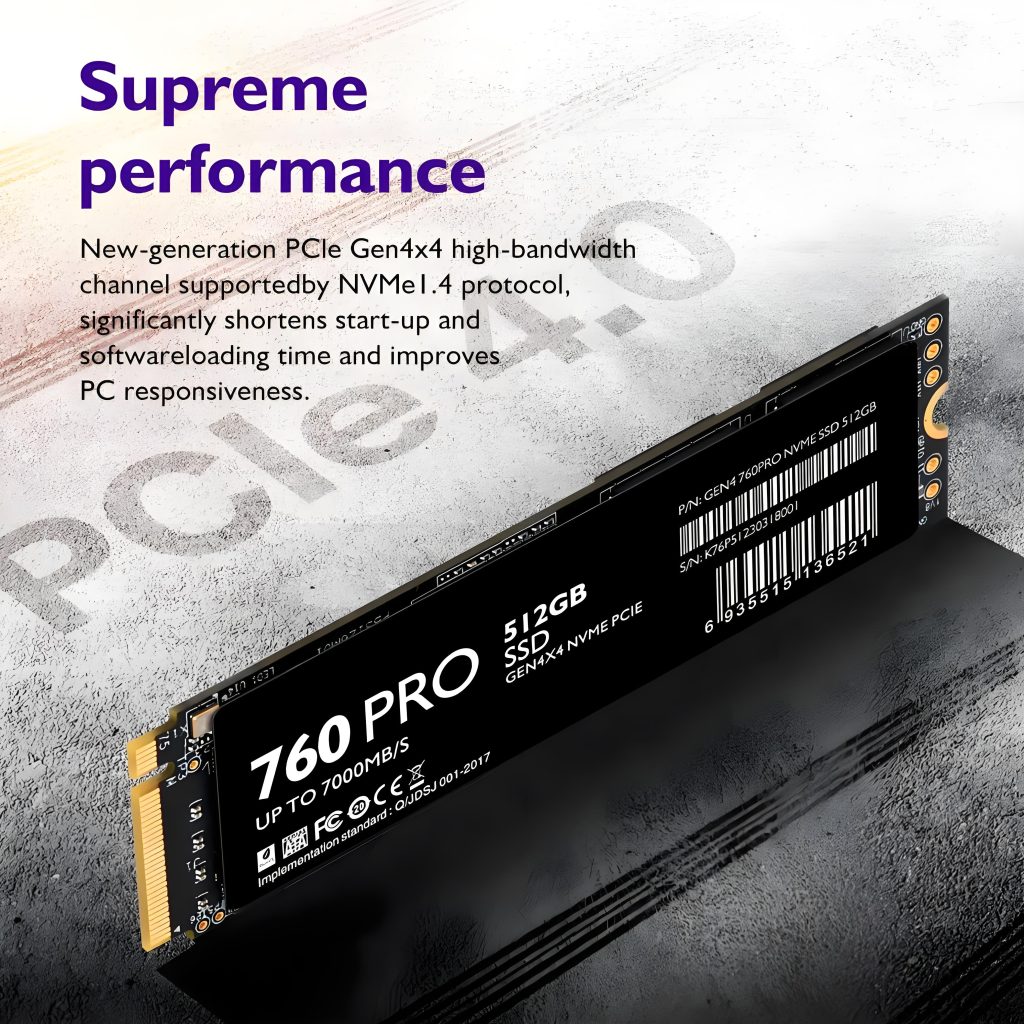

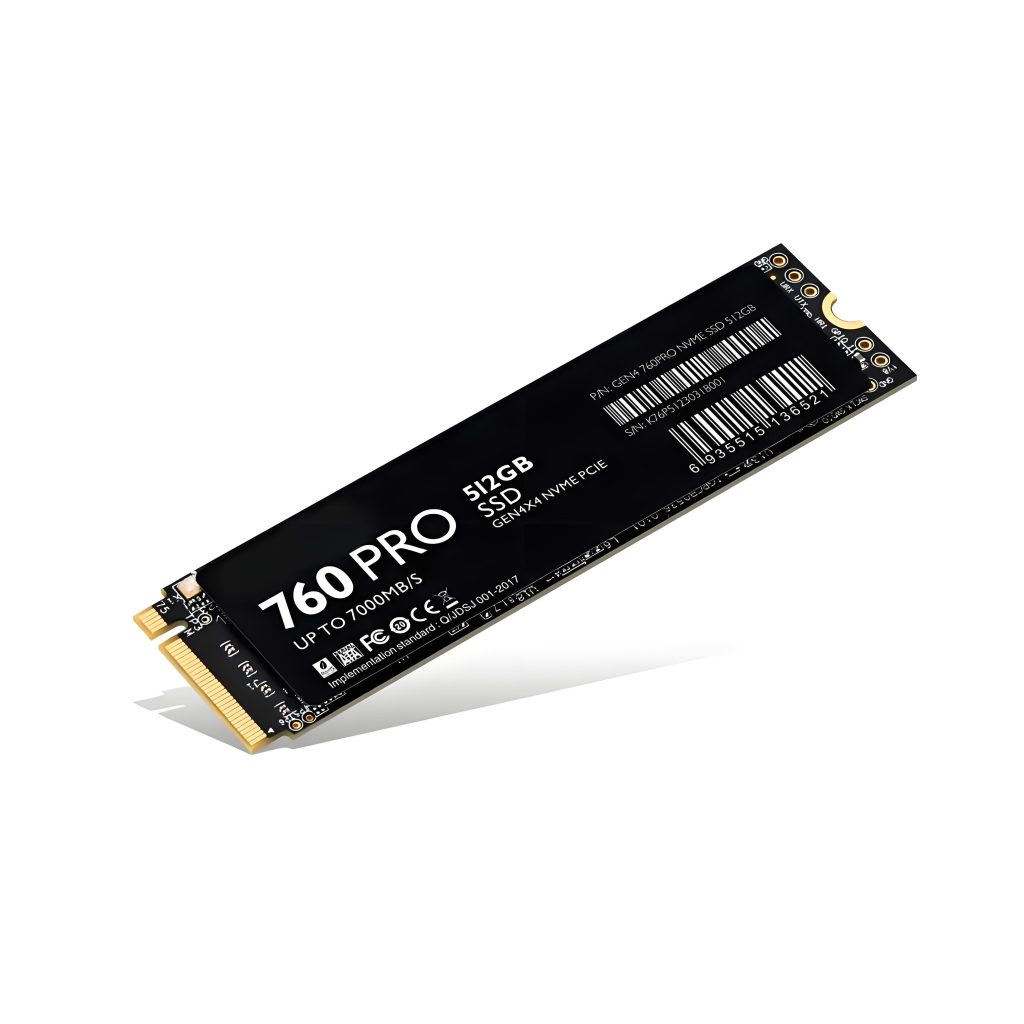

Gen4 NVMe SSD 760PRO

  • Interface: M.2 Gen4 x 4, PCIE signal;
  • Compatible Systems: Windows, Unix, Linux, Mac etc;
  • Use For: Server, PC, Gaming PC, Laptop, Desktop Computer, Designer Computer etc.
  • Efficient Transmission: The fastest transmission speed up to 7000MB/s;
  • Capacity: 512GB/1TB/2TB/4TB;
  • Operating Temperature: 0-70℃;
  • Storage Temperature: -40-75℃;
  • Size: 22*80*3 mm;
Model Name G48-760PRO NVME M.2-512GB G48-760PRO NVME M.2-1TB G48-760PRO NVME M.2-2TB G48-760PRO NVME M.2-4TB
Capacity 512GB 1TB 2TB 4TB
EAN 6935515136521 6935515136538 6935515136545 6935515136552
Min Sequential Read/Write(MB/s) 7000MB/s/4450MB/s 7000MB/s/6000MB/s 7000MB/s/6500MB/s 7000MB/s/6500MB/s
Max Sequential Read/Write(MB/s) 7000MB/s/4450MB/s 7000MB/s/6000MB/s 7000MB/s/6500MB/s 7000MB/s/6500MB/s
Product Series 760PRO NVMe(PCIE) Series SSD
Interface Type NVMe (PCIE Gen4)
Origin CN (Origin)
Brand HTsemi
Transport Protocol PCIe
Net Weight 7g
Gross Weight 30g/25g
RGB No
Temperature Alert No
OEM/ODM Yes
Cache built-in
4KB Random Wirte 190096
4KB Random Read 205870
Internal/External Internal
Operating Voltage 3.3V
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
Nand Flash Type TLC/QLC
MTBF 1500000h
Item Demension 22*80*3mm
Box Packing Size 145*88*16.5MM or 100*60*15MM
Certificate CE、FCC、ROHS、KC
Application PC/NB/Server/All in one PC etc
Controller SMI/Yeestor/Realtek/Maxio etc
Flash Brand Intel/Micron/SAMSUNG/SK Hynix/SanDisk/Kioxia/YMTC
Note: Speed measurement is for reference only (Speed measurement is slightly different for different computer configurations)

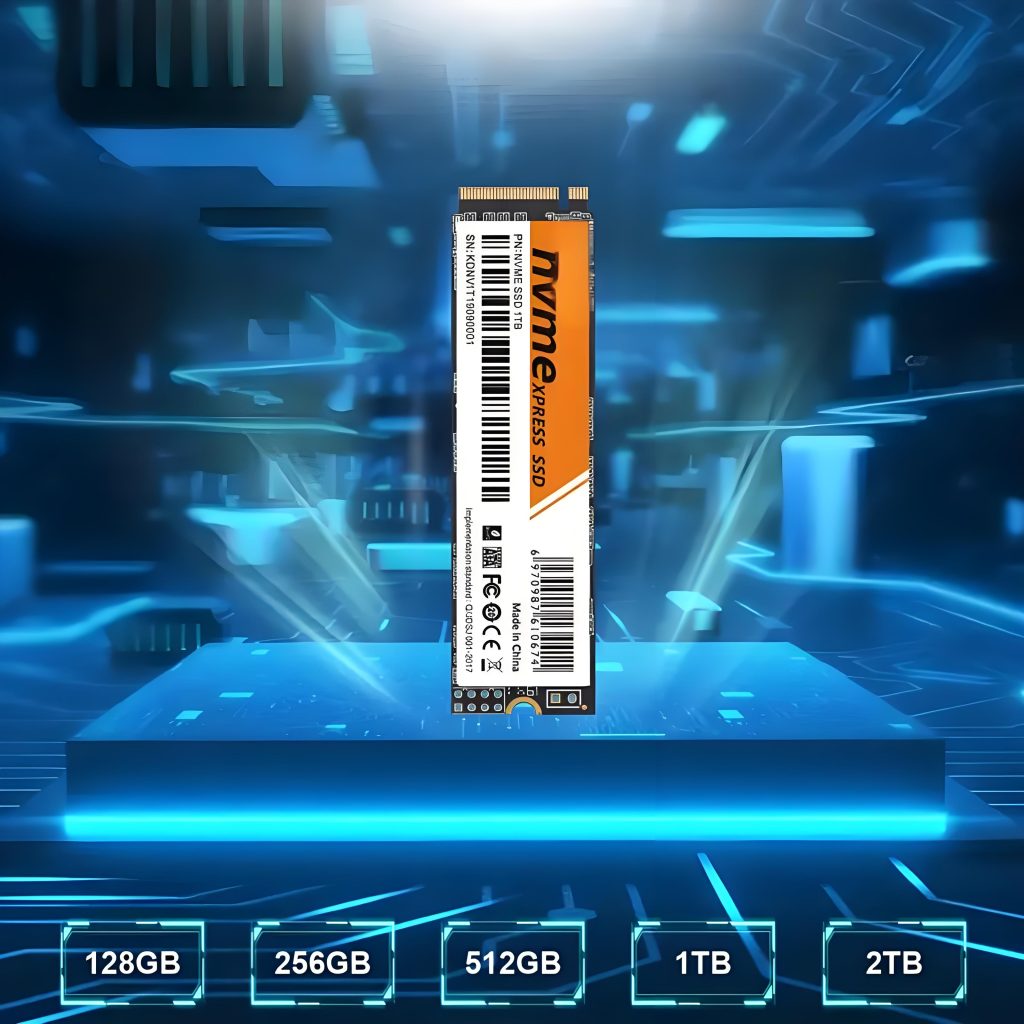

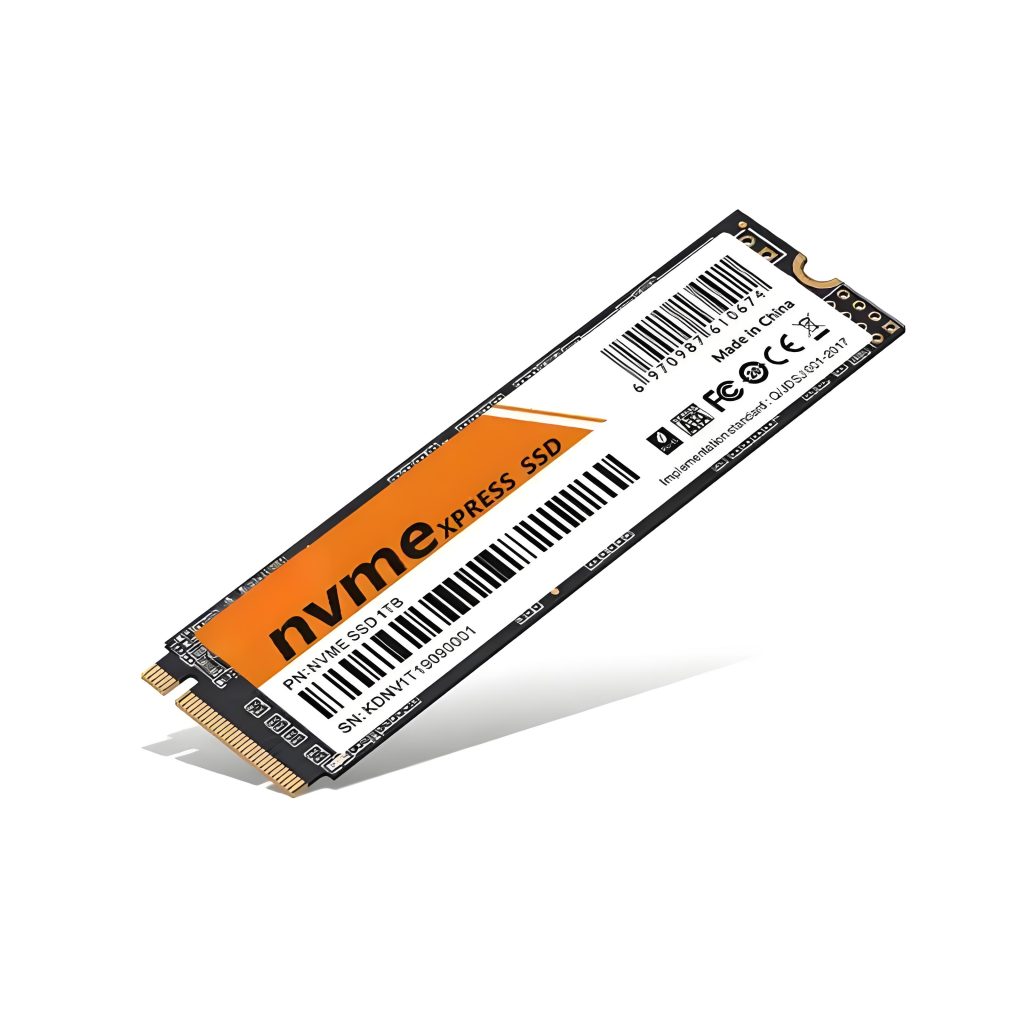

GEN3 NVMe SSD G38

  • Interface: M.2 PCIE Gen3 x 4, PCIE signal;
  • Operating Temperature Range: 0-70℃;
  • Storage Temperature Range: -40-75℃;
  • Capacity: 128GB/256GB/512GB/1TB/2TB/4TB;

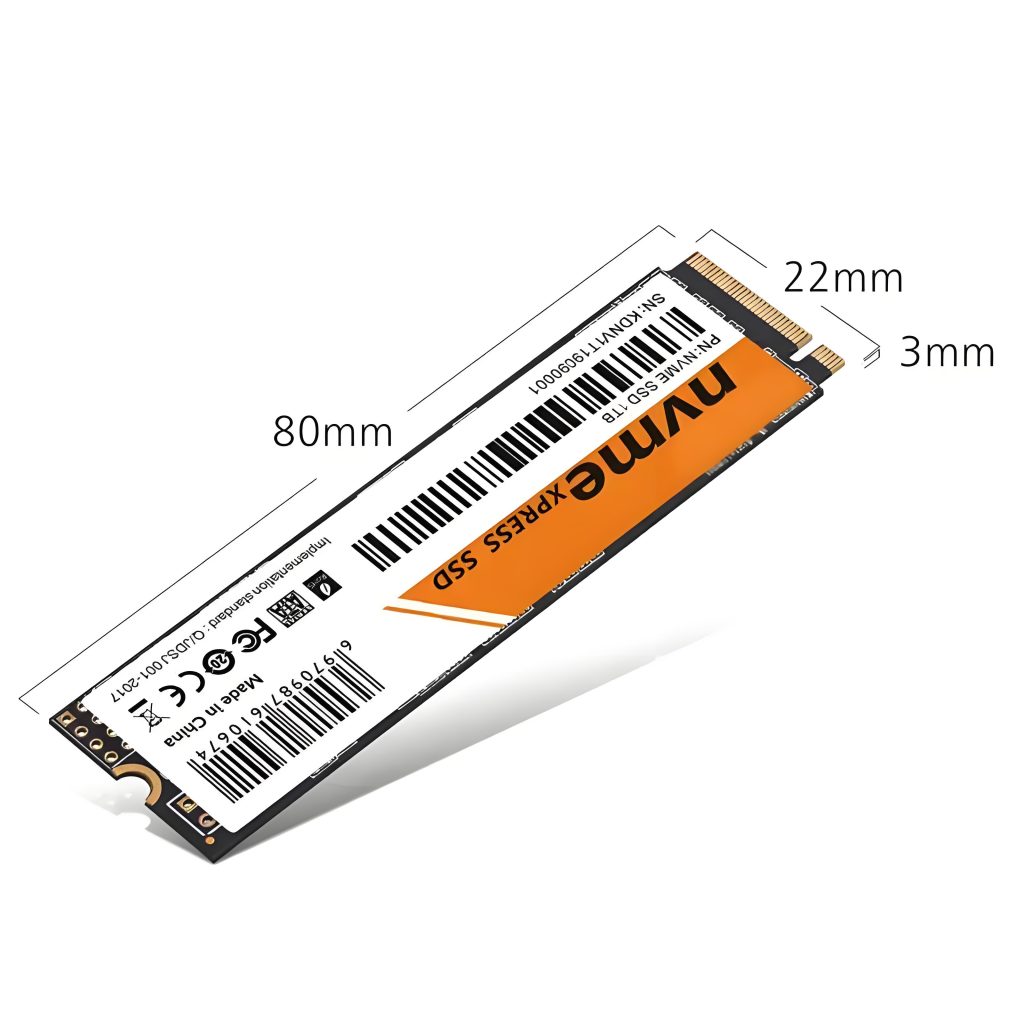

  • Dimension Information: 80*22*3mm;
  • Compatible Systems: Windows, Unix, Linux, Mac etc;
  • Efficient Transmission: The fastest transmission speed up to 3100MB / s;
  • Use for: Server, PC, Game PC, Designer Computer, Desktop PC, Laptop etc.
Model NameG38 NVME M.2 128GBG38 NVME M.2 256GBG38 NVME M.2 512GBG38 NVME M.2 1TBG38 NVME M.2 2TBG38 NVME M.2 4TB
Capacity128GB256GB512GB1TB2TB4TB
EAN693551513441169355151344286935515134435693551513444269355151352416935515136361
Min Sequential Read/Write(MB/s)1500MB/s/600MB/s1650MB/s/1100MB/s2000MB/s/1300MB/s2100MB/s/1600MB/s2300MB/s/1600MB/s2300MB/s/1600MB/s
Max Sequential Read/Write(MB/s)2170MB/s/650MB/s2400MB/s/1100MB/s2450MB/s/1750MB/s2350MB/s/1800MB/s3100MB/s/3000MB/s3100MB/s/3000MB/s
Product SeriesG38 NVME M.2(PCIE) Series SSD
Interface TypeNVMe (PCIE Gen3)
OriginCN (Origin)
BrandHTsemi
Transport ProtocolPCIe
Net Weight6g
Gross Weight30g/25g
RGBNo
Temperature AlertNo
OEM/ODMYes
CacheNone
4KB Random Wirte76113
4KB Random Read113343
Internal/ExternalInternal
Operating Voltage3.3V
Operating Temperature0-70℃
Storage Temperature-40~85℃
Warranty3 Years
Nand Flash TypeTLC/QLC
MTBF1500000h
Item Demension22*80*3mm

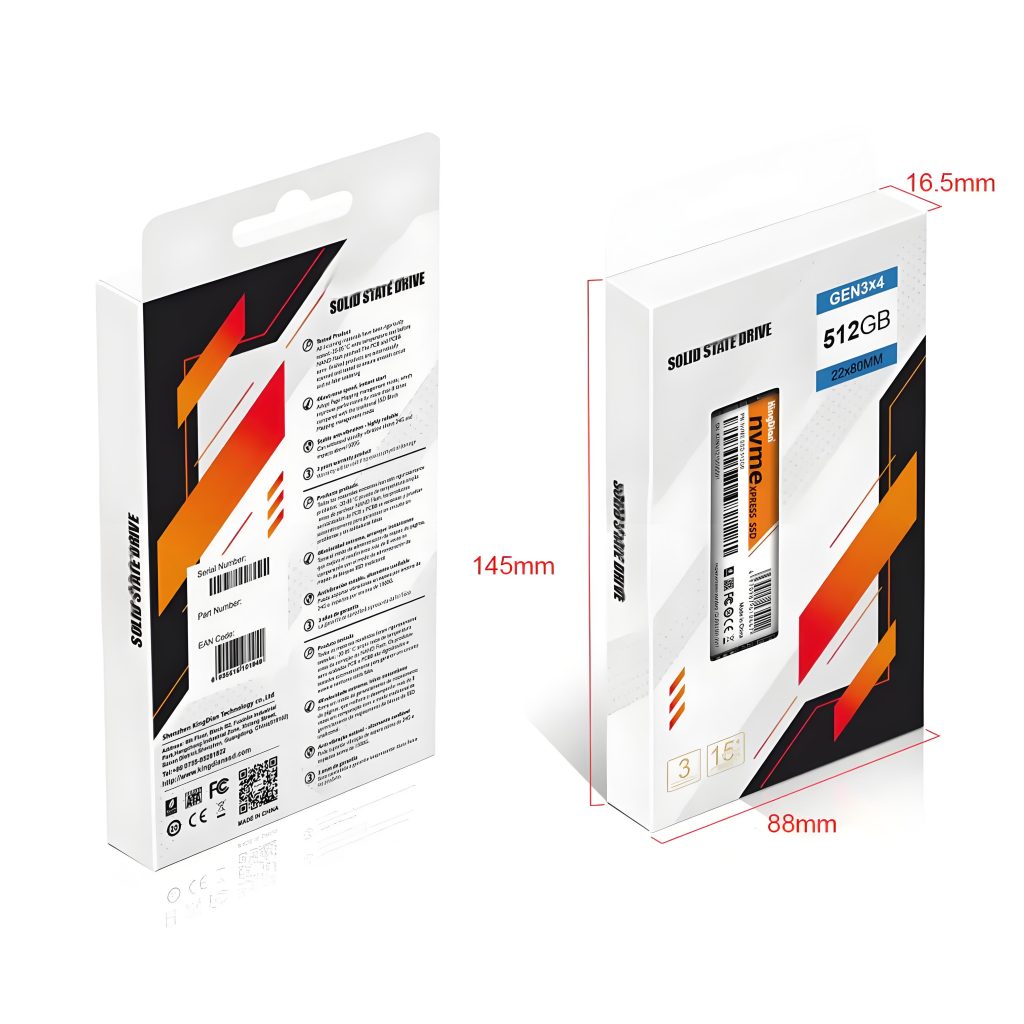

Box Packing Size145*88*16.5MM or 100*60*15MM
CertificateCE、FCC、ROHS、KC
ApplicationPC/NB/Server/All in one PC etc
ControllerSMI/Yeestor/Realtek/Maxio etc
Flash BrandIntel/Micron/SAMSUNG/SK Hynix/SanDisk/Kioxia/YMTC
Note: Speed measurement is for reference only (Speed measurement is slightly different for different computer configurations)
